This private charging station is made to charge any vehicle in Mode 3 at maximum 11.1kW. Benefit from your personal wallbox at home or at work in order to charge electric vehicles or plug-in hybrid vehicles.
Equipped with all necessary protections for European standards, this charging station includes a residual current device to protect user against potential continuous current leakage coming from the vehicle (DC 6mA). Thanks to that, you can simply connect this charging station to your power grid while being compliant with safety rules. This smart charging solution also has overheating and overcurrent protections.
This enhanced charging solution allows user to set charging current. It can also monitor available power from your power grid and automatically adjust charging power so that main fuse is not operated with optional dynamic power control.
Designed for external use, this EV charging station takes advantage of a robust and solid conception. Its use has been greatly simplified so that it is convenient for users.

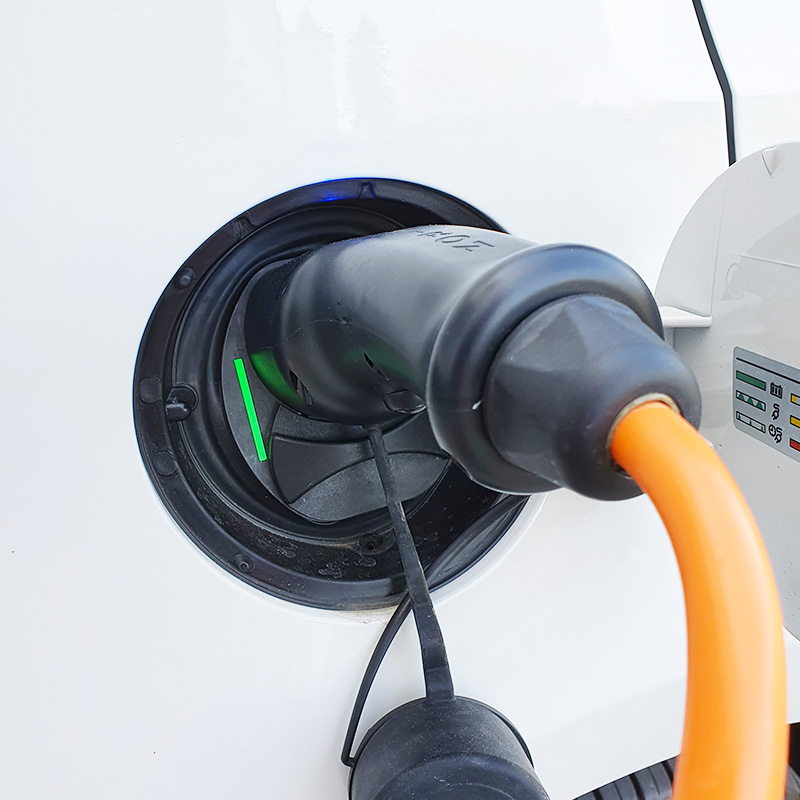

The Type-2 cable is really efficient: simply park the car next to the charging station, plug the cable in and charging starts automatically.
This wallbox is universal. It is compatible with any EV or PHEV from any brand or manufacturer having Type 2 charging socket which is European standard.
In addition to that, this charging station is designed and manufactured within the European Union. It complies with all mandatory rules and standards that are essential for your safety.
Datasheet
| Cable with connector |
|---|
 |
| Type 2 (European standard) |
| Charging specifications | |
|---|---|
| Charging power | from 4.2 kW to 11.1 kW from 1.4 kW to 3.7 kW (if single-phase) |
| Start-up | Plug & charge |
| Charging mode | Mode 3 |
| Rated voltage | 400V |
| Adjustable max. charging current | 6A / 8A / 10A / 13A / 16A |
| Charging current selection | Manual Automatic (Dynamic power control option) |
| V2H, V2G (Vehicle to Home, Vehicle to Grid) – ISO15118, Bidirectional charging ** | Module V2H, V2G – ISO15118 option available |
| AutoCharge * | available as an option with module ISO-15118 |
| Protections | |
|---|---|
| Protection rating | IP54 (rain resistant) |
| Shuts down in case of DC power leak | Yes (DC 6mA) |
| Shuts down in case of over-current | Yes (10kA circuit breaker) |
| Overheating handling | Yes (automated) |
| Ambient conditions of use | |
|---|---|
| Temperature range | -30°C to +50°C |
| Average temperature for 24 hours | under 35°C |
| Storage temperature | -40°C to +70°C |
| max. Humidity | 95 % |
| max. Altitude | 2000 m |
| Cable characteristics | |
|---|---|
| Premium quality | Lightweight and flexible |
| Length | Up to 20m on request |
| Enhanced resistance to | Organic aggression’s (oil, dust, water, lubricants, etc.) Torsion, abrasion, corrosion, flames, UVs |
| Origin | Germany |
| Other specifications | |
|---|---|
| Weight | ~ 8 Kg |
| Size (HxWxD) | Box: 30 x 20 x 12 cm Front plate: 34 x 24 cm |
| User reporting | LED |
| Elements reported | Charging status Errors from vehicle, environment, charger, etc. |
| Power supply | Three-phase alternating current with neutral (AC) |
| Voltage range | 270V to 470V (50/60Hz) |
| Certifications | |
|---|---|
| Conformity | CE certified |
| Standards | IEC 61851 IEC 62196 |
| Origin | Made in EU |
Compatible vehicles
Any plug-in hybrid (rechargeable) or electric vehicle having a Type 2 is able to charge on alternating current thanks to this charging station. Most vehicles can charge at 11.1 kW. You will find the list of compatible vehicles hereafter (not exhaustive):
- Plug-in hybride vehicles (rechargeable)
- Electric vehicles charging at 7.4 kW – [charging limited to 3.7 kW]
- Electric vehicles charging at 22 kW – [charging limited to 11 kW]
- Electric vehicles charging at 11 kW
- Audi Q4 40 e-tron, Audi e-tron, Audi e-tron GT, Audi e-tron Sportback
- BMW i3, BMW i4, BMW iX, BMW iX3
- Citroën ë-C4, Citroën ë-Jumper, Citroën ë-Jumpy, Citroën ë-SpaceTourer
- DS 3 Crossback E-tense
- Fiat 500e
- Ford Mustang Mach-e
- Hyundai Ioniq 5, Hyundai Kona electric
- Kia EV6
- Mercedes EQA, Mercedes EQC, Mercedes EQV
- MG4 luxury, MG4 comfort, MG ZS EV, MG Marvel R, MG5
- Mini Cooper SE
- Nissan Ariya
- Opel Corsa-e, Opel Mokka-e, Opel Vivaro-e, Opel Zafira-e Life
- Peugeot e-208, Peugeot e-2008, Peugeot e-Boxer, Peugeot e-Expert, Peugeot e-Traveller
- Polestar 2
- Porsche Taycan 4S, Porsche Taycan 4S Plus, Porsche Taycan Turbo, Porsche Taycan Turbo S
- Renault Twingo electric, Renault Megane electric, Renault Zoe
- Skoda Enyaq iV 60, Skoda Enyaq iV 80, Skoda Enyaq iV RS
- Volkswagen ID.3 Pro, Volkswagen ID.3 Pro Performance, Volkswagen ID.3 Pro S, Volkswagen ID.4 (77 kWh)
- Volvo XC40 Recharge
- Find my vehicle
Lead time: Expect a couple days before shipping (custom-made product)
* AutoCharge option is not available for vehicles of VAG group(Volkswagen, Audi, Skoda, etc…)
** With the V2H and V2G (bidirectional charging) option, our charging stations are equipped with the ISO-15118 module and can be updated when vehicles supporting the ISO-15118 standard become available.
Scope of delivery:
- 1 x Charging station for electric vehicles
Files to download after shipment of the charging station:
- User manual (in English)
- Quick installation guide (in English)
- Note: the wall holder for the Type 2 plug, shown on some of the pictures, is separately available here
