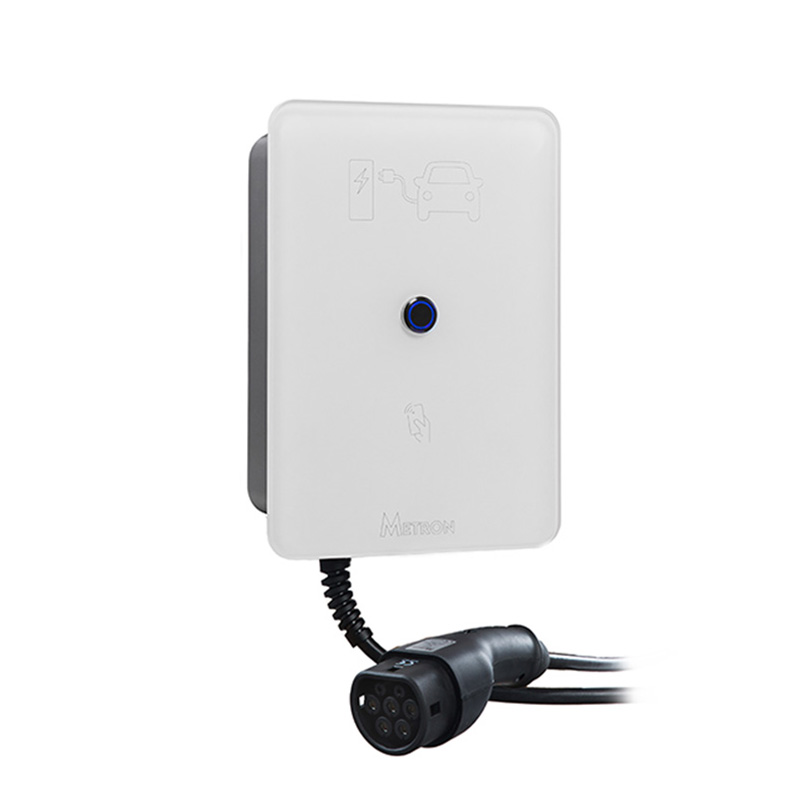

EV charging station with cable (up to 7.4kW)

  • Up to 7.4 kW
  • Residual Current Detection (DC 6mA)
  • Automatically optimized charging power
  • Custom sized cable
  • Universal private charging station
  • Designed & manufactured in EU

from 840,95

695,00  (ex. VAT)

This private charging station is made to charge any vehicle in Mode 3 at maximum 7.4kW. Benefit from your personal wallbox at home or at work in order to charge electric vehicles or plug-in hybrid vehicles.

Equipped with all necessary protections for European standards, this charging station includes a residual current device to protect user against potential continuous current leakage coming from the vehicle (DC 6mA). Thanks to that, you can simply connect this charging station to your power grid while being compliant with safety rules. This smart charging solution also has overheating and overcurrent protections.

This enhanced charging solution allows user to set charging current. It can also monitor available power from your power grid and automatically adjust charging power so that main fuse is not operated with optional dynamic power control.

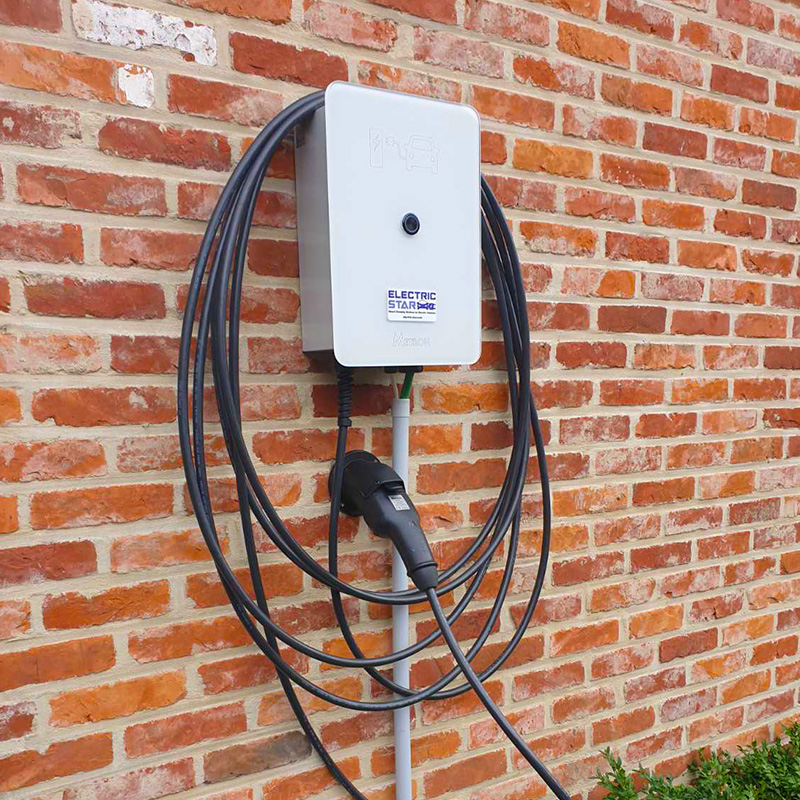

Designed for external use, this EV charging station takes advantage of a robust and solid conception. Its use has been greatly simplified so that it is convenient for users.

Cable used is ultra resistant. Made in Germany, it is extremely lightweight and flexible, even at cold temperatures.

This wallbox is universal. It is compatible with any EV or PHEV from any brand or manufacturer having Type 2 charging socket which is European standard.

In addition to that, this charging station is designed and manufactured within the European Union. It complies with all mandatory rules and standards that are essential for your safety.

Datasheet

Cable with connector
Type 2 Plug 300x279 - EV charging station with cable (up to 7.4kW)
Type 2 (European standard)
[Also available with Type 1 connector]
Charging specifications
Charging powerfrom 1.4 kW to 7.4 kW
Start-upPlug & charge
Charging modeMode 3
Rated voltage230V
Adjustable max. charging current6A / 8A / 10A / 13A / 16A / 20A / 25A / 32A
Charging current selectionManual
Automated (Dynamic power control option)
Protections
Protection ratingIP54 (rain resistant)
Shuts down in case of DC power leakYes (DC 6mA)
Shuts down in case of over-currentYes (10kA circuit breaker)
Overheating handlingYes (automated)
Ambient conditions of use
Temperature range-30°C to +50°C
Average temperature for 24 hoursunder 35°C
Storage temperature-40°C to +70°C
max. Humidity95 %
max. Altitude2000 m
Cable characteristics
Premium qualityLightweight and flexible
LengthUp to 20m on request
Enhanced resistance toOrganic aggression’s (oil, dust, water, lubricants, etc.)
Torsion, abrasion, corrosion, flames, UVs
OriginGermany
Other specifications
Weight (5m cable)~ 8 Kg
Size (HxWxD)Box: 30 x 20 x 12,7 cm
Front plate: 34 x 24 cm
User reportingLED
Elements reportedCharging status
Errors from vehicle, environment, charger, etc.

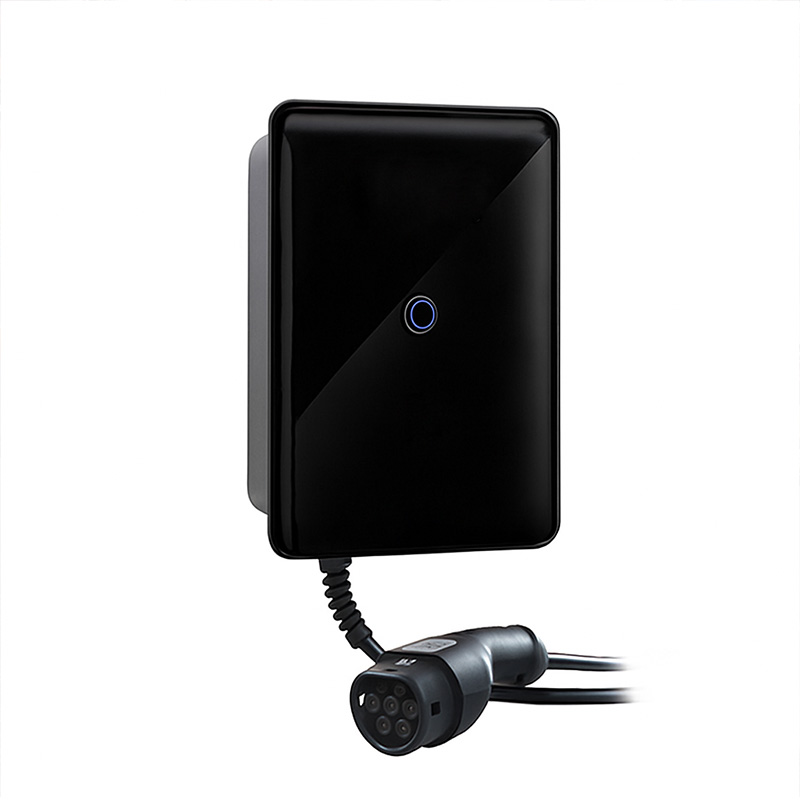

Color (cable and connector)Orange (or Black)
Power supplySingle-phase alternative current (AC)
Voltage range180V to 270V (50/60Hz)
Certifications
ConformityCE certified
StandardsIEC 61851
IEC 62196
OriginMade in EU

Compatible vehicles

Any plug-in hybrid (rechargeable) or electric vehicle having a Type 2 is able to charge on alternating current thanks to this charging station. Most vehicles can charge at 7.4 kW. You will find the list of compatible vehicles hereafter (not exhaustive):

  • Plug-in hybride vehicles (rechargeable)
  • Electric vehicles charging at 11 kW – [charging limited to 3.7 kW]
  • Electric vehicles charging at 22 kW – [charging limited to 7.4 kW]
  • Electric vehicles charging at 7.4 kW
    • Audi Q4 35 e-tron, Audi e-tron GT, Audi e-tron Sportback
    • Citroën ë-C4, Citroën ë-Jumper, Citroën ë-Jumpy, Citroën ë-SpaceTourer
    • Dacia Spring
    • Honda e
    • Hyundai Ioniq electric, Hyundai Kona electric
    • Kia e-Niro, Kia, e-Soul, Kia Soul EV
    • MG4, MG ZS EV, MG Marvel R, MG5
    • Nissan Ariya, Nissan Leaf, Nissan e-NV200
    • Opel Corsa-e, Opel Mokka-e, Opel Vivaro-e, Opel Zafira-e Life
    • Peugeot e-208, Peugeot e-2008, Peugeot e-Boxer, Peugeot e-Expert, Peugeot e-Traveller
    • Porsche Taycan 4S, Porsche Taycan 4S Plus, Porsche Taycan Turbo, Porsche Taycan Turbo S
    • Renault Twingo electric, Renault Megane electric, Renault Zoe
    • Seat Mii electric
    • Skoda CITIGOe iV, Skoda Enyaq iV 50
    • Volkswagen e-up!, Volkswagen e-up! 2.0, Volkswagen ID.3 Pure, Volkswagen ID.4 (52 kWh)
  • Find my vehicle

Lead time: Expect a couple days before shipping (custom-made product)

Scope of delivery:

  • 1 x Charging station for electric vehicles

Files to download after shipment of the charging station:

  • User manual (in English)
  • Quick installation guide (in English)
  • Note: the wall holder for the Type 2 plug, shown on some of the  pictures, is  separately available here
Smart Charge Control

Wireless dynamic power management, Without, Wired dynamic power management

Cable length

5 m, 5 m [in spiral], 6 m, 7 m, 8 m, 10 m, 12 m, 15 m, 20 m

Cable and plug color

Black, Orange

RFID access and OCPP

Without, OCPP + RFID tag access
